Product Advantages
The MST 71 is an economical, reliable, and ideal choice for workplace safety and process optimization, and features an innovative convex mirror design that not only enhances the visibility and clarity of the luminous effect, but also provides user-friendly settings for today’s applications.
- Innovative convex mirror design for all-round luminous visibility
- 8 tones selectable, up to 102dB volume, flexible adjustment according to the application
- Two external triggers for sound, distinguishable alarm and timely identification
- POKA YOKE , easy to install
- Pre-assembled models available, saving time and resources
Typical Applications
Signal alarm for errors
- Application to machines and equipment
- Automation systems
- Assembly plants, e.g. in the automotive industry
- Transportation belts for production or logistics
- Manual workstations, call response systems
Installation Options
- Plane mounting
- Tubular mounting
- Extra mounting options available with accessories
Features
- Maximum volume output 102dB
70mm Modular Signal Tower
Flyer Download : Signal Tower——MST 71
-
MST 71 - Audible Signal Elements (2)

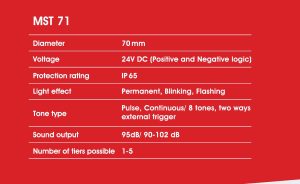

Technical Specifications / Order Specifications :- Dimensions (ϕ x Height) : 70mm x 53mm Housing : PC Life Duration : 5,000 Hours Protection Rating : IP65 2 Tones Siren Sound Output : 95db Tone Type : Permanent tone or pulse tone, selectable by slide switch Voltage : 24VDC Current Consumption : ≤20mA 8 Tones Siren Sound Output : 90-102db, selectable… -
MST 71 - Optical Signal Element (15)
Technical Specifications / Order Specifications :- Dimensions (ϕ x Height) : 70mm x 65mm Lens : PC Life Duration : 50,000 Hours Protection Rating : IP65 LED Permanent Light Element Voltage : 24VDC Current Consumption : ≤40mA LED Blinking Light Element Voltage : 24VDC Current Consumption : ≤40mA LED Flashing Light Element Voltage : 24VDC Current Consumption :… -
MST 71 - Terminal Elements (2)
Technical Specifications / Order Specifications :- Housing : PA Cable Entry : Diameter max. 9mm Protection Rating : IP65 Number of Tiers : 5 Connection : Screw terminal max. 2.5mm² Base Mounting Dimensions (ϕ x Height) : 70mm x 46.5mm Voltage : 24VDC Tube Mounting (ϕ 25mm) Dimensions (ϕ x Height) : 70mm x 86mm Voltage : 24VDC
