CM50 Series
Product Introduction
The CM50×50 wire mesh cable tray is a high-strength, ventilated cable management solution designed for efficient routing and support of power, data, and communication cables.

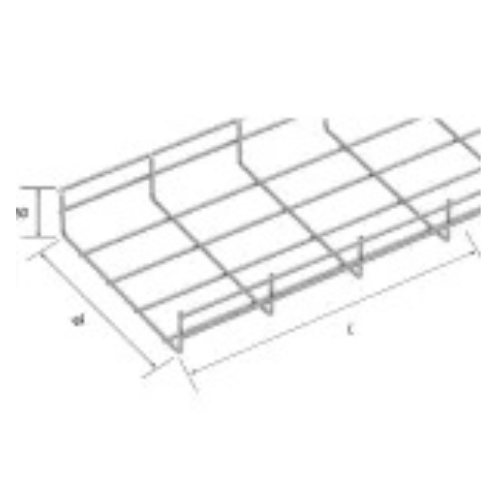

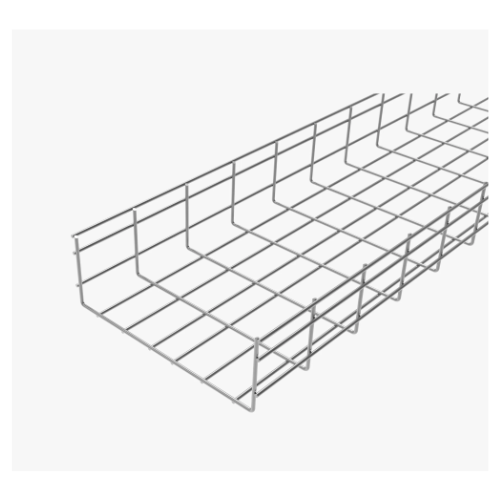

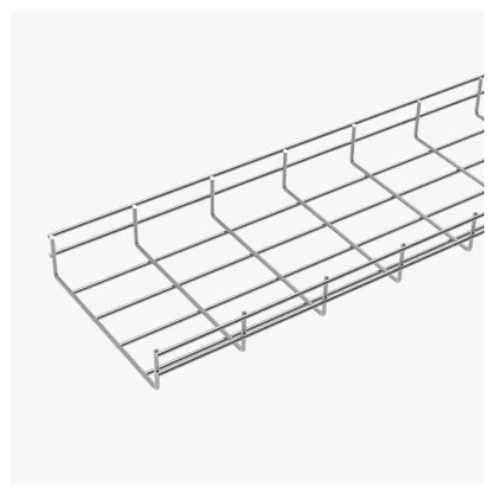

CM50 Wire Mesh Cable Tray
Description

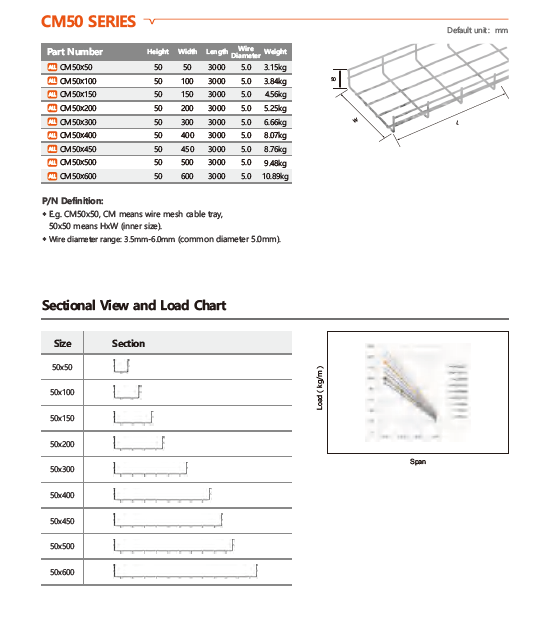

| Part Number | Height | Width | Length | Wire Diameter | Weight |
| CM50x50 | 50 | 50 | 3000 | 5.0 | 3.15kg |
| CM50x100 | 50 | 100 | 3000 | 5.0 | 3.84kg |
| CM50x150 | 50 | 150 | 3000 | 5.0 | 4.56kg |
| CM50x200 | 50 | 200 | 3000 | 5.0 | 5.25kg |
| CM50x300 | 50 | 300 | 3000 | 5.0 | 6.66kg |
| CM50x400 | 50 | 400 | 3000 | 5.0 | 8.07kg |
| CM50x450 | 50 | 450 | 3000 | 5.0 | 8.76kg |
| CM50x500 | 50 | 500 | 3000 | 5.0 | 9.48kg |
| CM50x600 | 50 | 600 | 3000 | 5.0 | 10.89kg |
Vich CM50 Wire Mesh Cable Tray Highlights
✅ Robust Construction – Made with 5.0mm thick steel wire (range: 3.5mm–6.0mm), ensuring superior load capacity and long-term reliability.
✅ Optimized Airflow & Heat Dissipation – Open mesh design prevents cable overheating, ideal for data centers and high-power applications.
✅ Corrosion-Resistant Protection – Available in hot-dip galvanized, stainless steel (SS304/SS316), or powder-coated finishes for harsh environments.
✅ Lightweight & Easy Installation – Modular design allows quick deployment and adjustments, reducing labor costs.
✅ Vich Quality Assurance – Manufactured under UL,CUL,CE,E90 standards, guaranteeing consistent performance and safety.
Why Choose Vich CM50?
✔ 19+ Years of Industry Expertise – Trusted by global clients for reliable cable management.
✔ Customizable Options – Tailored sizes, materials, and coatings to fit project needs.
✔ Competitive Pricing – High-quality solutions at cost-effective rates.
Applications:
Data Centers & Telecom – Ensures proper airflow for sensitive equipment.
Industrial Plants – Supports heavy-duty power and control cables.
Commercial Buildings – Aesthetic and functional cable organization.
Upgrade to Vich CM50 Wire Mesh Cable Tray – Where Innovation Meets Reliability!
Keywords: Wire Mesh Cable Tray, CM50 Cable Tray, China Cable Tray Supplier, Industrial Cable Management, Hot-Dip Galvanized Cable Tray, Vich Cable Tray Solutions
Need adjustments for specific markets or additional technical specs? Let me know!
