CM100 Wire Mesh Cable Tray
Product Introduction

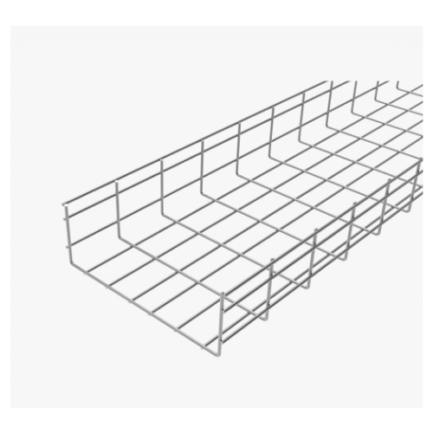

The CM100×100 wire mesh cable tray is a high-strength, ventilated cable management solution designed for efficient routing and support of power, data, and communication cables.
P/N Definition:
◆ E.g. CM100x100, CM means wire mesh cable tray, 100×100 means HxW (inner size).
◆ Wire diameter range: 3.5mm-6.0mm (common diameter 5.0mm).
Description
Description
| Part Number | Height | Width | Length | Wire Diameter | Weight |
| CM100x100 | 100 | 100 | 3000 | 5.0 | 5.25kg |
| CM100x150 | 100 | 150 | 3000 | 5.0 | 5.94kg |
| CM100x200 | 100 | 200 | 3000 | 5.0 | 6.66kg |
| CM100x300 | 100 | 300 | 3000 | 5.0 | 8.07kg |
| CM100x400 | 100 | 400 | 3000 | 5.0 | 9.48kg |
| CM100x450 | 100 | 450 | 3000 | 5.0 | 10.17kg |
| CM100x500 | 100 | 500 | 3000 | 5.0 | 10.89kg |
| CM100x600 | 100 | 600 | 3000 | 5.0 | 12.30kg |
P/N Definition:
◆ E.g. CM100x100, CM means wire mesh cable tray,
100×100 means HxW (inner size).
◆ Wire diameter range: 3.5mm-6.0mm (common diameter 5.0mm).
Sectional View and Load Chart
| Size | Section |
| 100×100 |  |
| 100×150 |  |
| 100×200 |  |
| 100×300 |  |
| 100×400 |  |
| 100×450 |  |
| 100×500 |  |
| 100×600 |  |
Surface Treatment Technology
