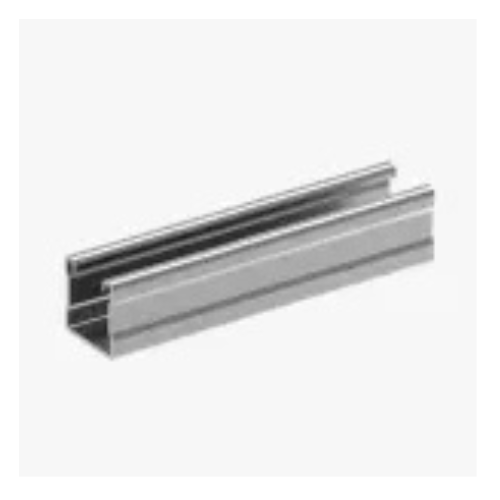

Strut Channel Bar with KSK
Instruction Manual:

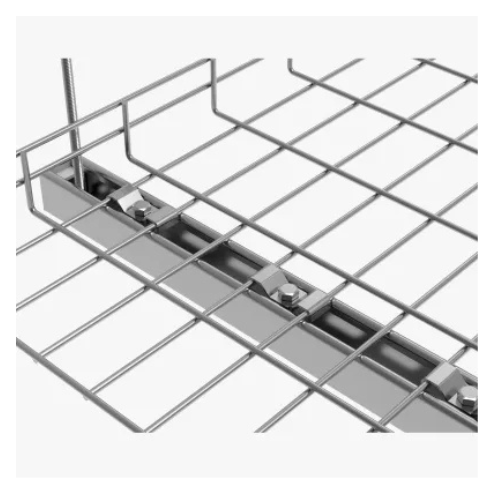

◆ Suitable for: hanging trays, also can be used for wall & floor mount.
◆ Fit for: diameter of wire from 3.5mm to 6.0mm.

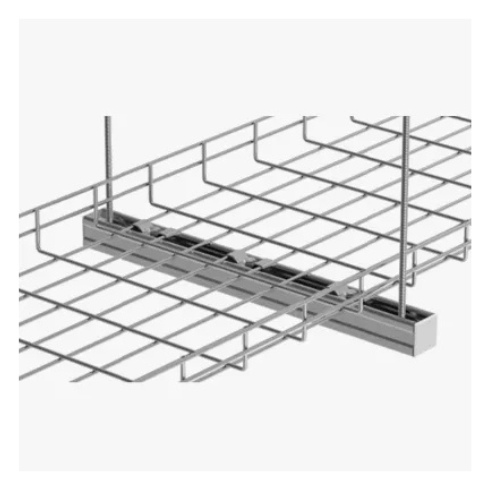

◆ Hanging trays are often installed with M12 threaded rod, drop in anchor bolt, and flange nut.
Description
Description

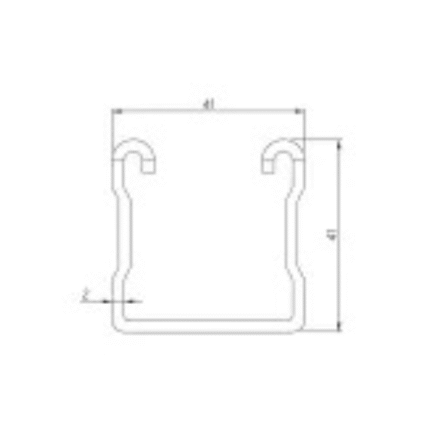

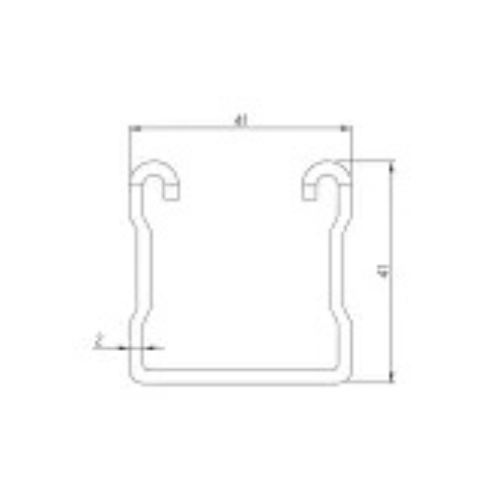

| Part Number | Height | Width | Length | Pack | Weight |
| PJ-UHDC100 | 41 | 41 | 200 | 2.0 | 0.40kg |
| PJ-UHDC150 | 41 | 41 | 250 | 2.0 | 0.68kg |
| PJ-UHDC200 | 41 | 41 | 300 | 2.0 | 0.75kg |
| PJ-UHDC300 | 41 | 41 | 400 | 2.0 | 0.89kg |
| PJ-UHDC400 | 41 | 41 | 500 | 2.0 | 1.10kg |
| PJ-UHDC450 | 41 | 41 | 550 | 2.0 | 1.21kg |
| PJ-UHDC500 | 41 | 41 | 600 | 2.0 | 1.31kg |
| PJ-UHDC600 | 41 | 41 | 700 | 2.0 | 1.52kg |
Instruction Manual:
◆ Suitable for: hanging trays, also can be used for wall & floor mount.
◆ Fit for: diameter of wire from 3.5mm to 6.0mm.
◆ Hanging trays are often installed with M12 threaded rod, drop in anchor bolt, and flange nut.
