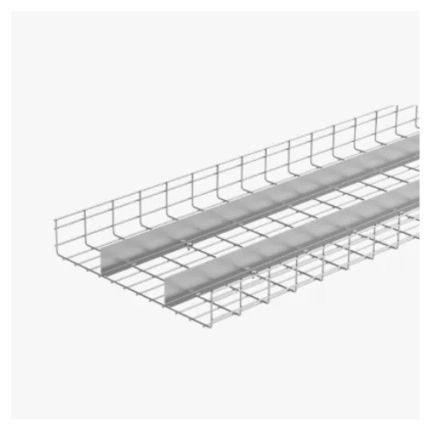

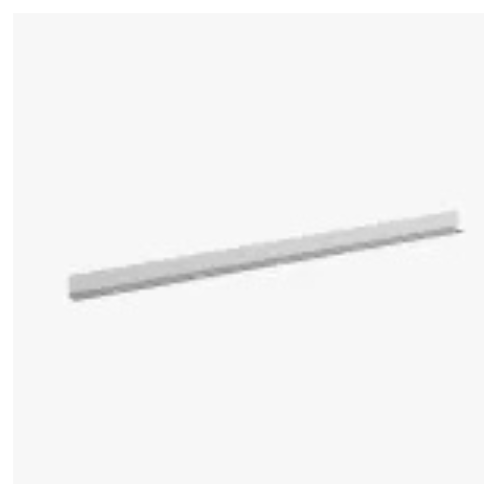

Divider
P/N Definition:
◆ E.g. PJ-DVR50-1000, PJ means wire mesh cable tray accessories,
DVR means divider, 50 means it fits 50mm high wire mesh cable trays, 1000 means 1000mm long per piece.
Instruction Manual:
◆ Suitable for:lsolating strong and weak electricity, often uesd in data center.
◆ Fit for:wire diameter from 3.5mm to 6.0mm,covering all sizes of cable trays.
◆ Includes:cover ×1, cover clamp ×1, M6×20 carriage bolt ×3.
Description
Description

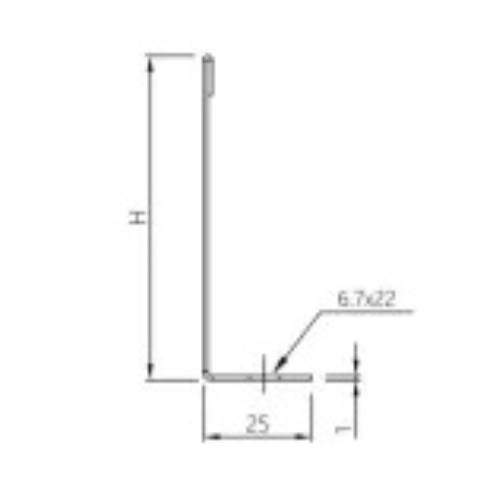

| Part Number | Height | Width | Length | Weight |
| PJ-DVR50-1000 | 47.5 | 25.5 | 1m | 0.60kg |
| PJ-DVR100-1000 | 75.0 | 25.5 | 1m | 0.81kg |
| PJ-DVR150-1000 | 125.0 | 25.5 | 1m | 1.27kg |
| PJ-DVR50-3000 | 47.5 | 25.5 | 3m | 1.80kg |
| PJ-DVR100-3000 | 75.0 | 25.5 | 3m | 2.43kg |
| PJ-DVR150-3000 | 125.0 | 25.5 | 3m | 3.81kg |
P/N Definition:
◆ E.g. PJ-DVR50-1000, PJ means wire mesh cable tray accessories, DVR means divider, 50 means it fits 50mm high wire mesh cable trays, 1000 means 1000mm long per piece.
Instruction Manual:
◆ Suitable for:lsolating strong and weak electricity, often uesd in data center.
◆ Fit for:wire diameter from 3.5mm to 6.0mm,covering all sizes of cable trays.
◆ Includes:cover ×1, cover clamp ×1, M6×20 carriage bolt ×3.
