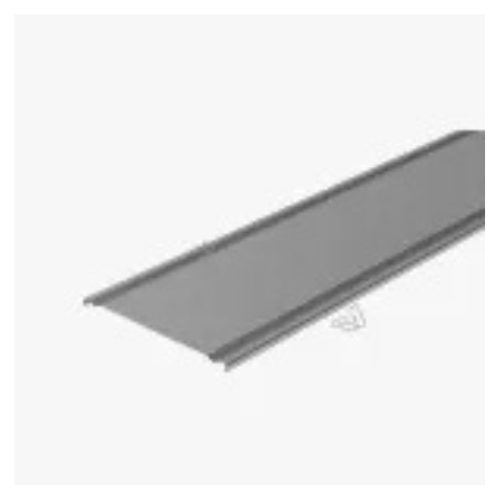

Cover
P/N Definition:
◆Eg. PJ-CVRC100-3000, PJ means wire mesh cable tray accessories, CVRC means wire mesh cable tray cover, 100 means 100mm high, 3000 means 3000mm long per piece.
Instruction Manual:

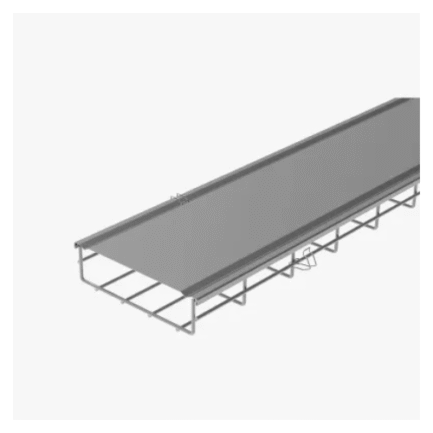

◆ Suitable for: cover for wire mesh cable trays.
◆ Fit for: wire diameter from 3.5mm to 6.0mm, wire mesh cable tray width over 100mm.
◆Includes: cover x1, cover damp x4.
Description
Description
| Part Number | Height | Width | Length | Weight |
| PJ-CVRC100-1000 | 8.5 | 100 | 1m | 1.46kg |
| PJ-CVRC150-1000 | 8.5 | 150 | 1m | 1.97kg |
| PJ-CVRC200-1000 | 8.5 | 200 | 1m | 2.48kg |
| PJ-CVRC300-1000 | 8.5 | 300 | 1m | 3.50kg |
| PJ-CVRC400-1000 | 8.5 | 400 | 1m | 4.52kg |
| PJ-CVRC450-1000 | 8.5 | 450 | 1m | 5.03kg |
| PJ-CVRC500-1000 | 8.5 | 500 | 1m | 5.54kg |
| PJ-CVRC600-1000 | 8.5 | 600 | 1m | 6.56kg |
| PJ-CVRC100-3000 | 8.5 | 100 | 3m | 4.38kg |
| PJ-CVRC150-3000 | 8.5 | 150 | 3m | 5.91kg |
| PJ-CVRC200-3000 | 8.5 | 200 | 3m | 7.44kg |
| PJ-CVRC300-3000 | 8.5 | 300 | 3m | 10.50kg |
| PJ-CVRC400-3000 | 8.5 | 400 | 3m | 13.56kg |
| PJ-CVRC450-3000 | 8.5 | 450 | 3m | 15.09kg |
| PJ-CVRC500-3000 | 8.5 | 500 | 3m | 16.62kg |
| PJ-CVRC600-3000 | 8.5 | 600 | 3m | 19.68kg |
P/N Definition:
◆Eg. PJ-CVRC100-3000, PJ means wire mesh cable tray accessories, CVRC means wire mesh cable tray cover, 100 means 100mm high, 3000 means 3000mm long per piece.
Instruction Manual:
◆ Suitable for: cover for wire mesh cable trays.
◆ Fit for: wire diameter from 3.5mm to 6.0mm, wire mesh cable tray width over 100mm.
◆Includes: cover x1, cover damp x4.
