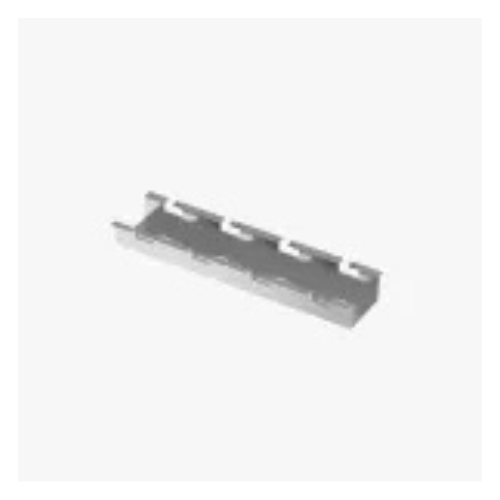

Trapeze Bar
Instruction Manual:
◆ Suitable for: Hanging trays are often installed with.
◆ Fit for: diameter of wire from 3.5mm to 6.0mm.

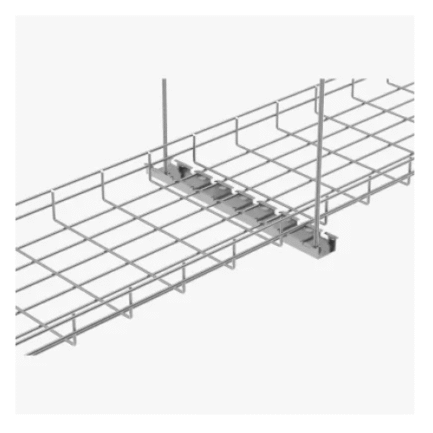

◆ Hanging trays are often installed with M10 threaded rod, drop in anchor bolt, and flange nut.
Description
Description

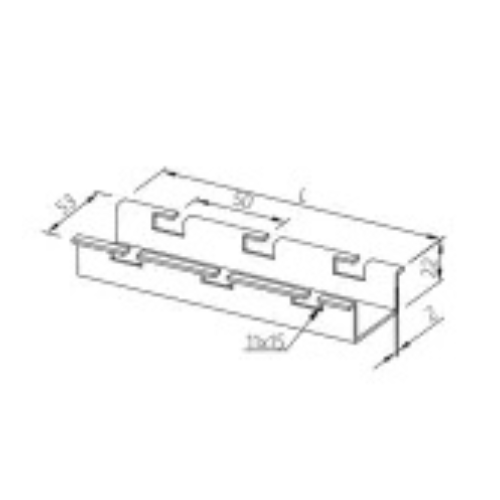

| Part Number | Height | Width | Length | Thickness | Pack | Weight |
| PJ-BR100 | 22 | 53 | 200 | 2.0 | 50 | 0.23kg |
| PJ-BR150 | 22 | 53 | 250 | 2.0 | 50 | 0.29kg |
| PJ-BR200 | 22 | 53 | 300 | 2.0 | 30 | 0.35kg |
| PJ-BR300 | 22 | 53 | 400 | 2.0 | 30 | 0.46kg |
| PJ-BR400 | 22 | 53 | 500 | 2.0 | 30 | 0.59kg |
| PJ-BR450 | 22 | 53 | 550 | 2.0 | 20 | 0.65kg |
| PJ-BR500 | 22 | 53 | 600 | 2.0 | 20 | 0.70kg |
| PJ-BR600 | 22 | 53 | 700 | 2.0 | 20 | 0.82kg |
Instruction Manual:
◆ Suitable for: Hanging trays are often installed with.
◆ Fit for: diameter of wire from 3.5mm to 6.0mm.
◆ Hanging trays are often installed with M10 threaded rod, drop in anchor bolt, and flange nut.
Surface Treatment Technology
