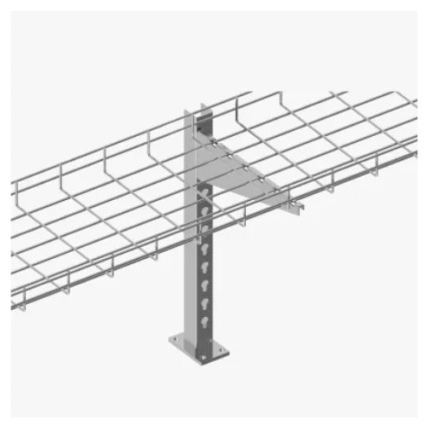

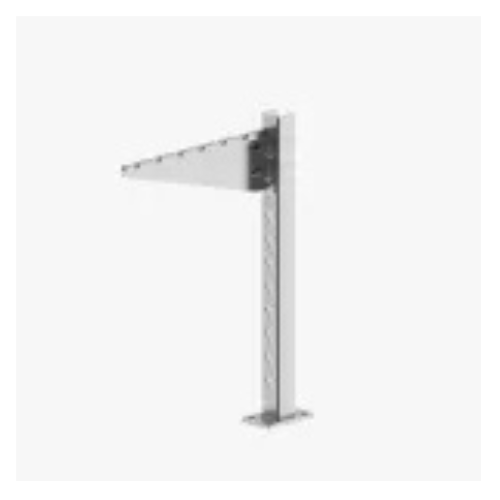

Flag Type Floor Stand
Instruction Manual:
◆ Suitable for: supporting 100mm trays on floor, height adjustable.
◆ Fit for: wire diameter from 3.5mm to 6.0 mm, tray width from 100mm to 600mm.
◆ Includes: bracket x1, pole x1 (bolt and nut optional).
Description
Description

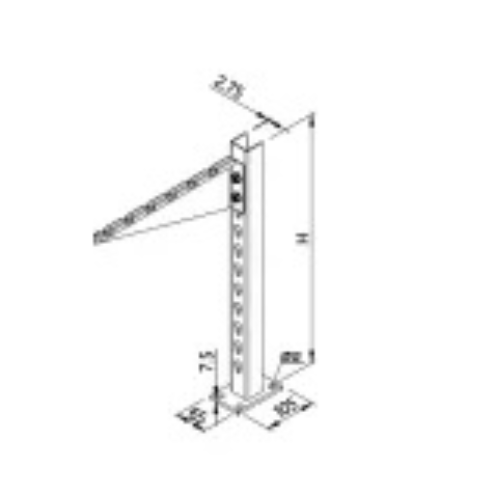

| Part Number | Height | Length | Weight |
| PJ-FFS100 | 500 | 120 | 1.82kg |
| PJ-FFS150 | 500 | 170 | 1.88kg |
| PJ-FFS200 | 500 | 220 | 1.92kg |
| PJ-FFS300 | 500 | 320 | 2.11kg |
| PJ-FFS400 | 500 | 420 | 2.40kg |
| PJ-FFS450 | 500 | 470 | 2.49kg |
| PJ-FFS500 | 500 | 520 | 2.57kg |
| PJ-FFS600 | 500 | 620 | 2.72kg |
Instruction Manual:
◆ Suitable for: supporting 100mm trays on floor, height adjustable.
◆ Fit for: wire diameter from 3.5mm to 6.0 mm, tray width from 100mm to 600mm.
◆ Includes: bracket x1, pole x1 (bolt and nut optional).
