CMS50 Special Series
Product Introduction

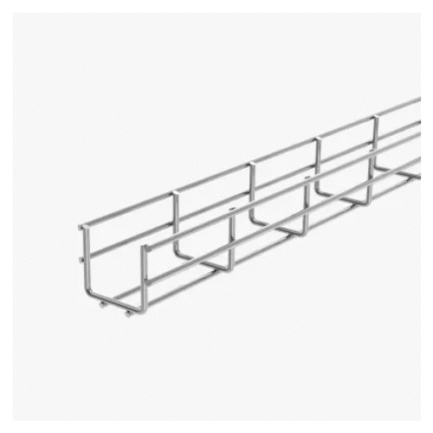

The CMS50×50 wire mesh cable tray is a high-strength, ventilated cable management solution designed for efficient routing and support of power, data, and communication cables.
P/N Definition:
◆ E.g. CMS50x50, CMS means wire mesh cable trays with double metal wires on the bottom along its length,
50×50 means HxW (inner size).
◆ Wire diameter range: 3.5mm-6.0mm (common diameter 5.0mm).
◆ CMS50 series is generally applied to machanical equipment.
Description
Description

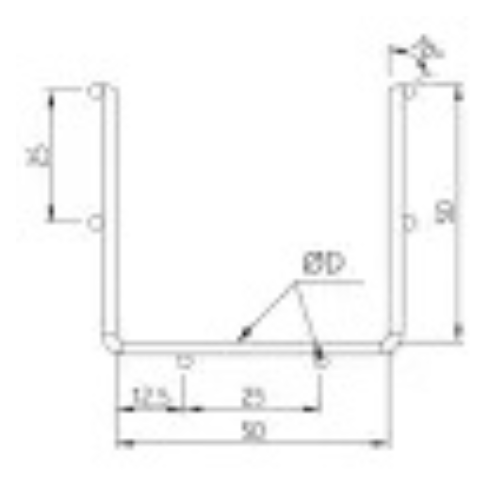

| Part Number | Height | Width | Length | Wire Diameter | Weight |
| CMS50x50 | 50 | 50 | 3000 | 5.0 | 3.84kg |
P/N Definition:
◆ E.g. CMS50x50, CMS means wire mesh cable trays with double metal wires on the bottom along its length,50×50 means HxW (inner size).
◆ Wire diameter range: 3.5mm-6.0mm (common diameter 5.0mm).
◆ CMS50 series is generally applied to machanical equipment.
