ODOT B32 B64 Series Modular Integrated IO Module System Flexible and Reliable
Description
Product Details

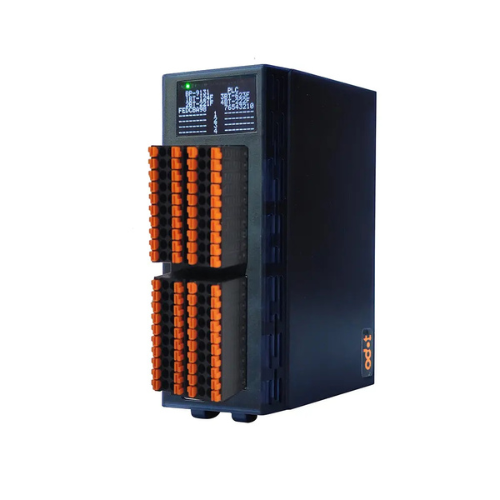

B series Modular integrated IO:
◆BOXIO-32 carries 1 communication board and 2 IO slots,
BOXIO-64 carries 1 communication board and 4 IO slots;
◆The communication protocols with Modbus-TCP, Profinet, EtherCAT, EtherNet/IP are optional for the communication board;
◆Slots 1/2/3/4 can be independently selected according to customer IO requirements, and a single module supports up to 16 channels;
◆With LCD display, you can view information such as communication parameters, IO channel status, module version, etc.;
◆Plastic shell, small size, easy to install;
◆Independent design, can be customized by OEM and ODM;
◆WTP: -40~ 85℃
◆Warranty: 3 years
ODOT B series is integrated I/O module with modular combinations inside. The power supply and COMM board are at the bottom, and the IO module communicates with the COMM board through the backplane (the green module as below). It could support expansion max of 2 / 4 IO slots.
Product Details


Cards for Boxio
| PRODUCT | P/N | Specifications |
| COMM board | BN-8011 | Modbus-RTU slave,1RS485,the max sum of input&output 8192 bytes |
| BN-8021 | CANopen slave,max input 328 bytes,max output 254 bytes | |

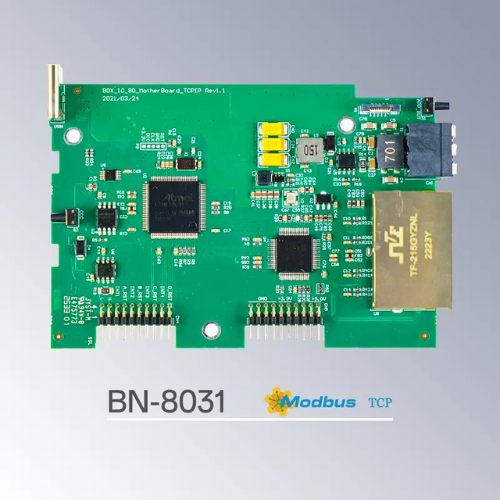

| BN-8031 | Modbus-TCP server,2xRJ45,10/100Mbps, the max sum of input &output 8192 bytes | |
| BN-8031-6V | Modbus-TCP server,2xRJ45,10/100Mbps, the max sum of input &output 8192 bytes, 8DI&8DO | |
| BN-8031-68S | Modbus-TCP server,4DI&4DO,and 1 RS485 interface, supporting Modbus RTU master functionality | |
| BN-8032 | Profinet slave,2xRJ45,10/100Mbps,max input 1440 bytes,max output 1440 bytes | |
| BN-8032-L | Profinet slave,2xRJ45,10/100Mbps,max input 1440 bytes,max output 1440 bytes | |
| BN-8033 | EtherCAT slave,2xRJ45,10/100Mbps,max input 341 bytes,max output 256 bytes | |
| BN-8034 | EtherNET/IP slave,2xRJ45,10/100Mbps,max input 504 bytes,max output 504 bytes | |
| Digital Input Card | BT-124F | 16DI,PNP or NPN/high or low level active, 24VDC, counter frequency <200Hz |
| Digital Output Ccad | BT-221F | 16DO,NPN/low level active,24VDC@0.3A |
| BT-222F | 16DO,PNP/high level active,24VDC@0.5A | |
| Analog Input Card | BT-3158 | 8AI,0-5VDC/0-10VDC/±5VDC/±10VDC,12 bits |
| BT-3168 | 8AI,0-5VDC/0-10VDC/±5VDC/±10VDC,15/16 bits | |
| BT-3238 | 8AI, 0-20mA/4-20mA,15 bits | |
| BT-3244 | 4AI, 0-20mA/4-20mA/±20mA,15 bits, | |
| Analog Output Card | BT-4154 | 4AO, 0-5VDC/0-10VDC/±5VDC/±10VDC,15/16 bits |
| BT-4234 | 4AO, 0-20mA/4-20 mA,15/16 bits | |
| Special Card | BT-5102 | 2-channel encoder input,5V single-ended,input frequency<1.5 MHz |
| BT-5112 | 2-channel encoder input,24V single-ended,input frequency<0.5 MHz | |
| BT-5121 | 1-channel SSl encoder input,5V differential,input frequency<2 MHz | |
| BT-5141 | 1-channel SSl encoder input,5V differential,input frequency<2 MHz | |
| BT-623F | 8DI,PNP or NPN/high or low level active,24VDC, and 8DO,PNP/high level active,24VDC@0.5A |
Product Size
